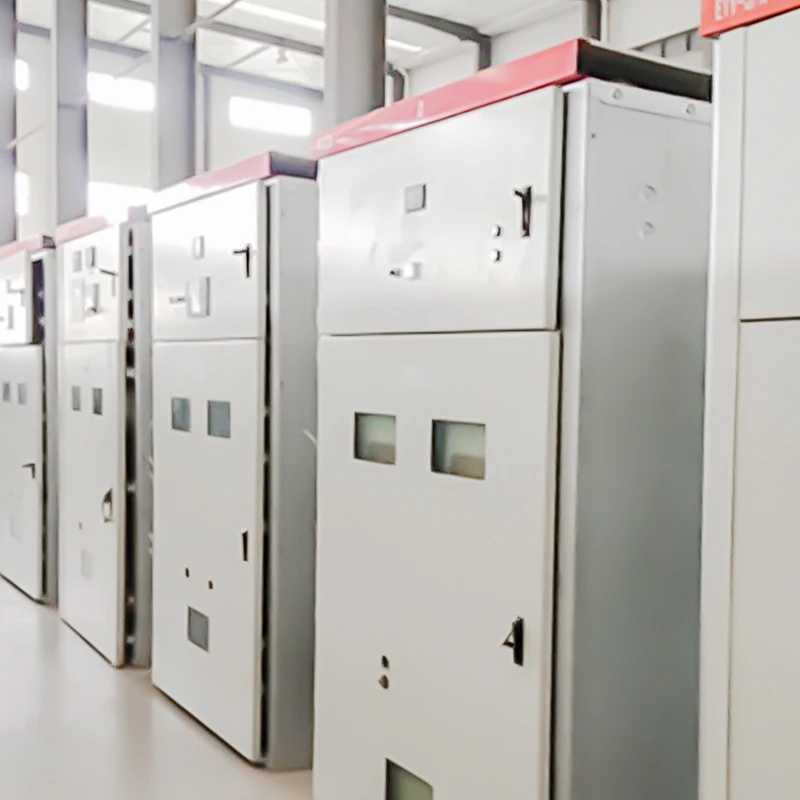

CEEG HXGN-12 High Voltage Ring Main Unit (SF6) Custom Switchgear

Type: High Voltage Switchgear
Rated Voltage: 12KV, 17.5KV, 24KV
Rated Current: 400A, 630A
Service: Customized Service
Request A Quote

1. The cabinet is crafted from aluminum-zinc plated sheet material, precision-machined, and assembled using CNC machine tools.

2. Compact in size, lightweight, aesthetically pleasing, user-friendly, long-lasting, and maintenance-free.

3. Equipped with domestically-manufactured FLN36 or Schneider's SC6 sulfur hexafluoride load switch, and can also accommodate circuit breakers.

4. Features a well-designed pressure release channel and "five-protection" mechanical interlock system to ensure operator safety.

5. The main busbar rated current of 630A, a rated transfer current of 1700A, a maximum rated current of 160A for fuses, and a breaking current of 50kA.

HXGN-12 High Voltage Ring Main Unit (SF6)

Name

Unit

Parameter

Rated Voltage

kV

12

17.5

24

Operating Voltage(50HZ,1min)

kV

42

38

50

Impulse Withstand Voltage

kV

75

95

125

Rated Current

A

400

400

400

630

630

630

Closing Short-Circuit Current

A

400

400

400

630

630

630

No-Load Transformer Inrush Current

A

25

25

25

Cable Charging Current for Opening

A

25

25

25

Rated Thermal Stable Current(1s)

kA

12.5 25

12.5 25

12.5 25

Rated Thermal Stable Current(2s)

kA

12.5 20

12.5 20

12.5 20

Rated Thermal Stable Current(3s)

kA

12.5 16

12.5 16

12.5 16

Rated Short-circuit Closing Current

kA

31.5 62.5

31.5 62.5

31.5 62.5

Transfer Current

A

1200

800

600

production ability.png CEEG production ability 61.jpgOur production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.

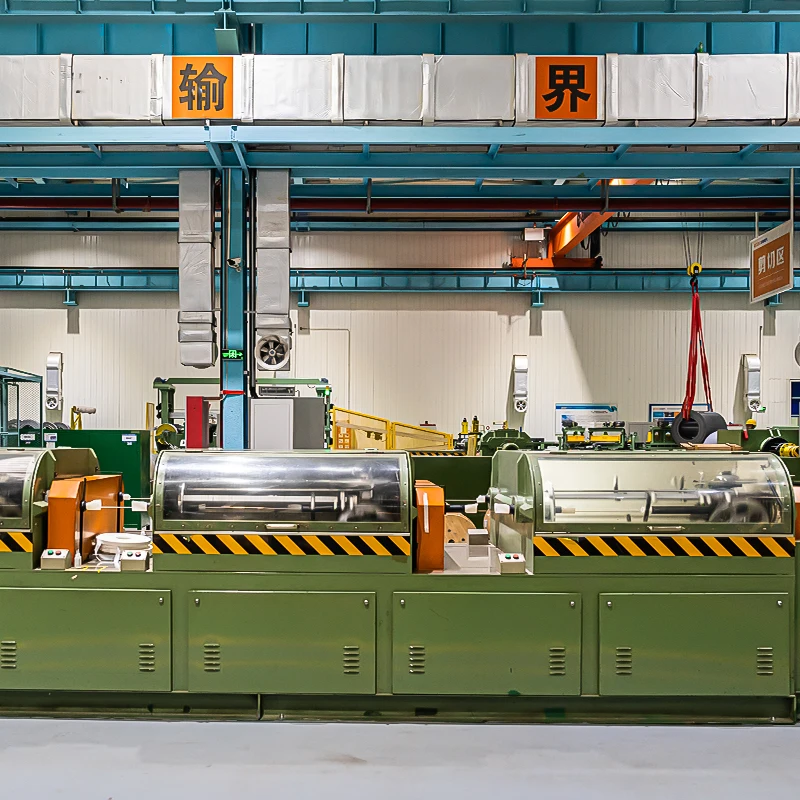

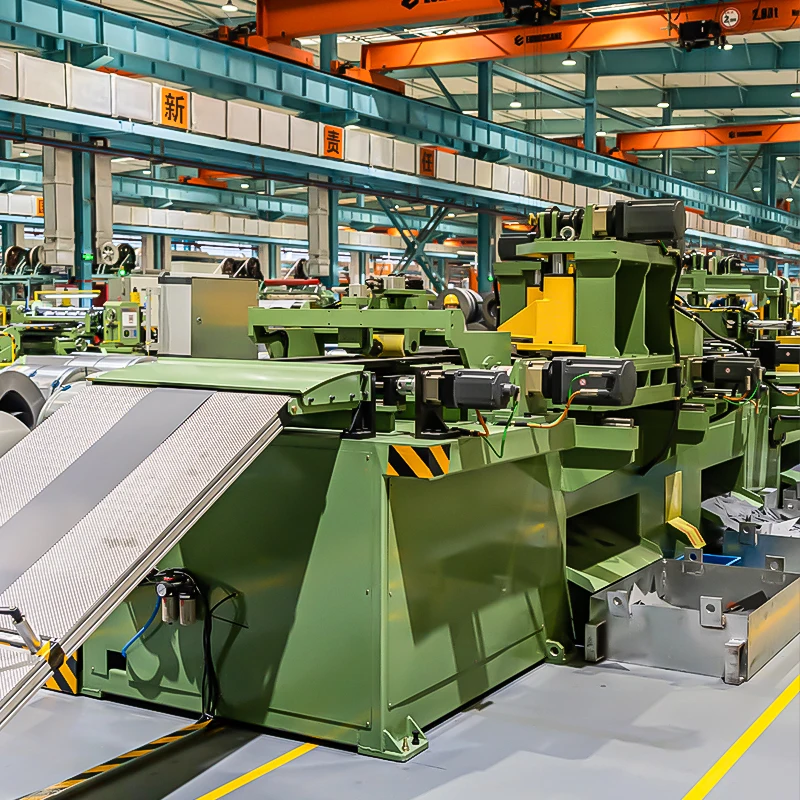

We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure that our products comply with international standards and customer needs.

We have a strong production capacity of 30 million kVA power transformers per year. This means we can cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.
